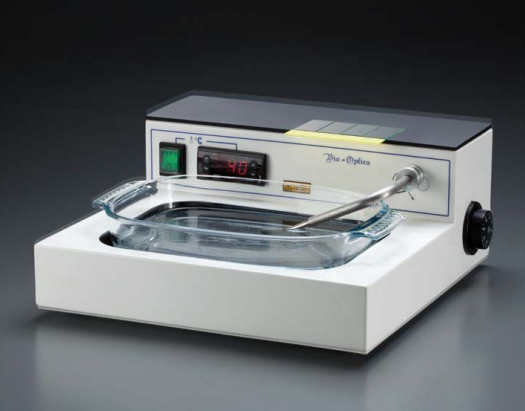

Water bath for sample sections collection

Download Product's Datasheet

Thermostated bath used to collect and dry histological samples sections. Designed to be used together with the laboratory microtome, it maintain the water temperature at the desired level so that the sections can be handled properly.

- Painted sheet steel chassis.

- NTC10K probe provided with articulated arm and safety device that cut off the power supply and the basin heating when the basin is removed.

- Removable pirex basin (capacity ca. 1,2 litres) for a simple operation of filling and emptying.

- A 6 Watt neon lamp illuminates the basin in order to facilitate the sections collecting.

- Slide-dryer plate that can house up to 24 slides, situated on the back side.

- Working temperature adjustment (Water bath): From +20°C to +70°C through electronic thermostat with microprocessor. Reading precision ±1°C.

- Temperature taking system: Through NTC10K probe immersed directly in water.

- Working parameters visualization and modification: Through control panel with decimal digital display.

- Working temperature adjustment (Slide-dryer plate): From +20°C to +65°C through analogic manual thermostat. The full scale up to 90°C is not usable
